Reliable 500 lb. Torsional Stub Axles (pair)

Reliable

SKU
TSA-500
List Price: $467.73
$364.97
In-Stock
- +

Product ships FREE on orders over $99

Have a Question ? Talk to a specialist- Live chat or call 877-507-0944

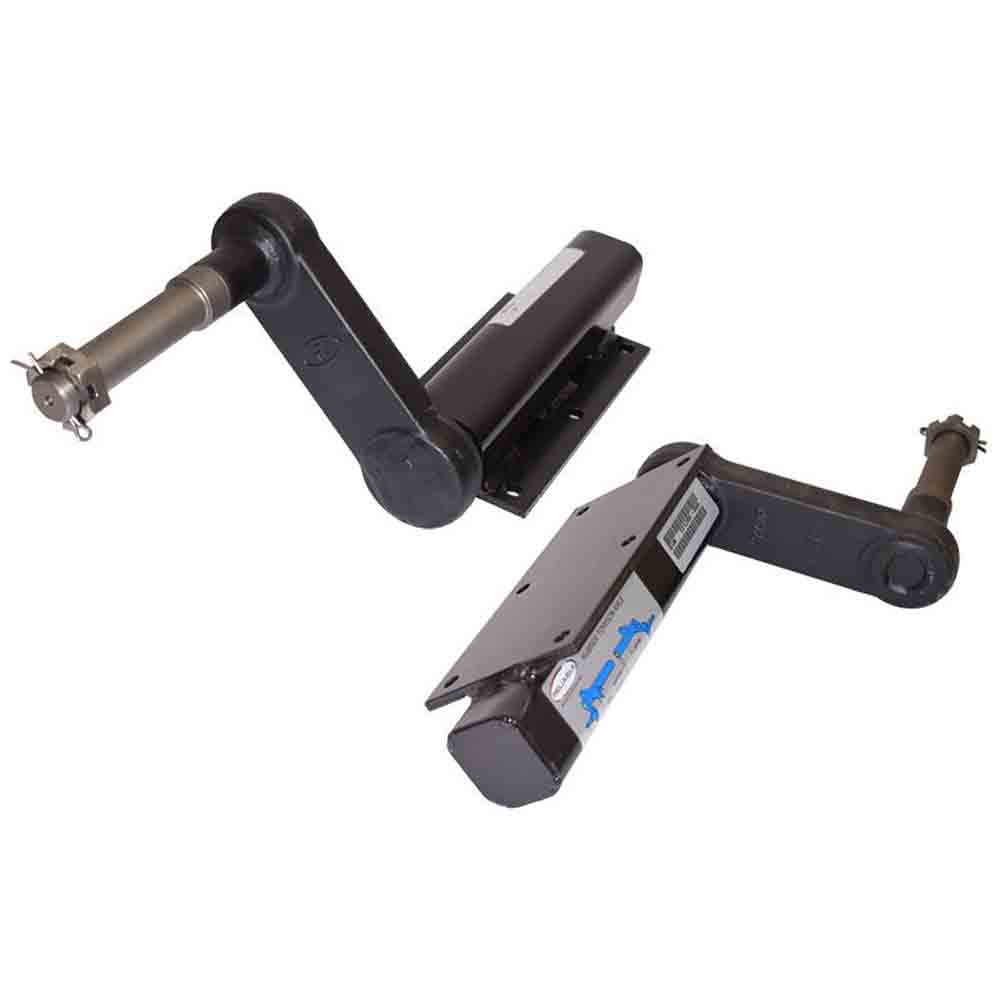

500 lb. Torsional Stub Axles (pair)

Product Details

Reliable torsional stub axles use specially formulated "rubber" cords to cushion the turning of the inner bar to create the best suspension on the market today. This progressive torque action provides the best shock absorption, load handling and durability features that are available for all types of trailers. The independent action of each wheel reduces shock transfer and trailer sway. Hubs and bearings sold separately.

Includes (2) torsional stub axles with 1 inch straight spindles, castle nuts and cotter pins. Spindle arms are positioned at 45 degrees downward starting angle with 2-1/2 inches of travel. Stub axles do not include flanges for mounting electric or hydraulic brakes.

  • Please Note: 18.5 x 8.5 And 20.5 x 8 "Doughnut" Tires Cannot Be Used With These Torsional Axles. Those Tires Will Not Clear Axle Arm.
  • One-piece forged spindles have a starting position of 45 degrees down
  • 1 inch straight spindles with castle nuts and cotter pins
  • Progressive torque action and independent suspension
  • Stub axles can be bolted or welded to trailer frame

Specifications

Specifications
Brand Reliable
Capacity 500 lbs.
