Ram A-Frame Top Wind Jack, 2,000 lbs. LIft Capacity
SKU
TJA-2002-B
List Price:
$49.95
Ram A-Frame Top Wind Jack, 2,000 lbs. LIft Capacity
$39.54
In-Stock
Have a Question ? Talk to a specialist- Live chat or call 877-507-0944
Ram A-Frame Top Wind Jack, 2,000 lbs. LIft Capacity, 3,000 Support Capacity.
Similar to Bulldog Jack - HB-155022
Product Details

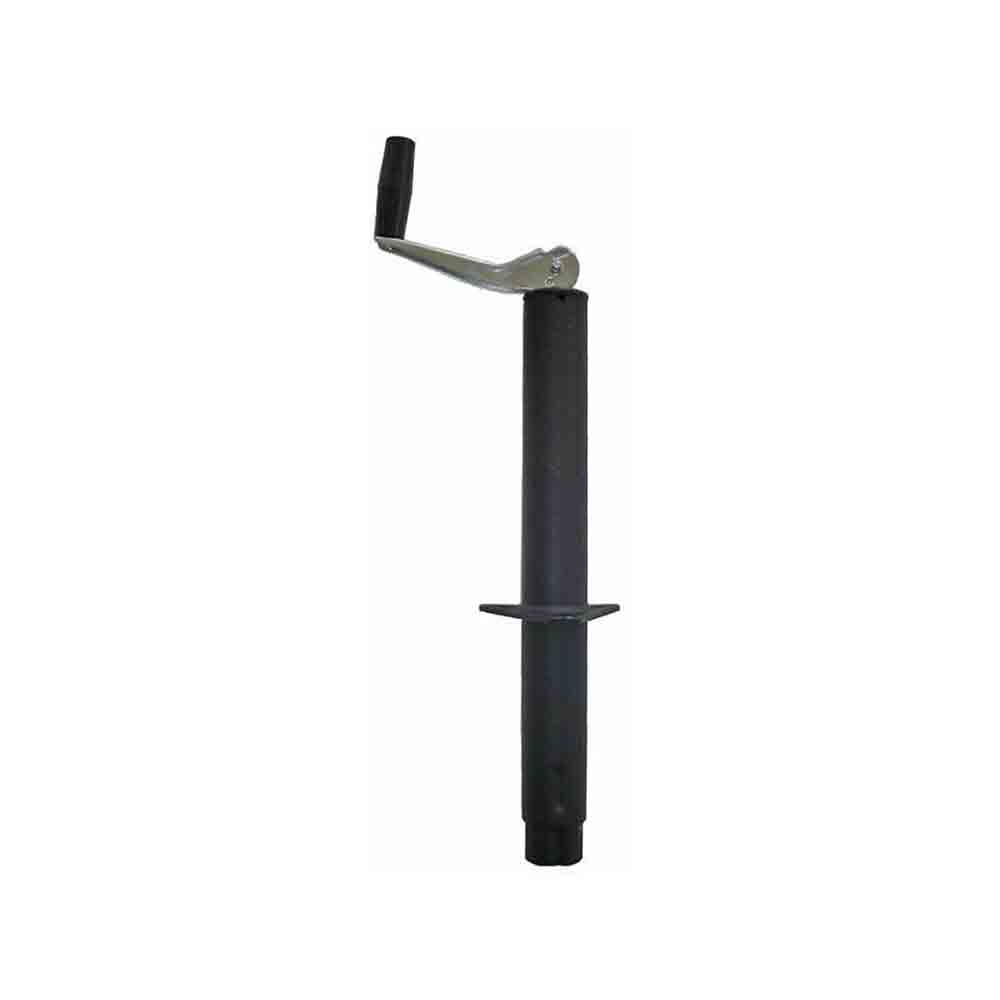

This is a Ram Topwind Tongue Jack with a Black powered coat finish. For use with A-Frame trailers.
- 15" Travel distance
- 15" Clearance
- 2,000 lbs. Lift capacity
- 3,000 lbs. Support capacity
- 9.25" bracket height from bottom of jack to bolt flange
- 24.25" jack height when fully retracted
- There is also a Removable Caster or Foot Plate Available
- The High Strength Mounting Bracket Provides Easy Bolt-On or Weld-On Installation
Specifications
| Brand | RAM |
|---|---|
| Jack Type | Top Wind |
| Clearance C | 15 inch |
| Extended B | 38 inch |
| Finish | Black |
| Inner Tube | 2 inch |
| Lift Capacity | 2,000 lbs. |
| Outer Tube | 2-1/4 inch |
| Retracted A | 23 inch |
| Support Capacity | 3,000 lbs. |
| Travel | 15 inch |
| Warranty | Limited 1 Year Warranty |
