Recessed Heavy Duty Tie Down Ring

Sierra Pacific

SKU
SP-895
List Price: $31.95
$18.99
In-Stock
- +

Product ships FREE on orders over $99

Have a Question ? Talk to a specialist- Live chat or call 877-507-0944

Recessed Heavy Duty Tie Down Ring

Product Details

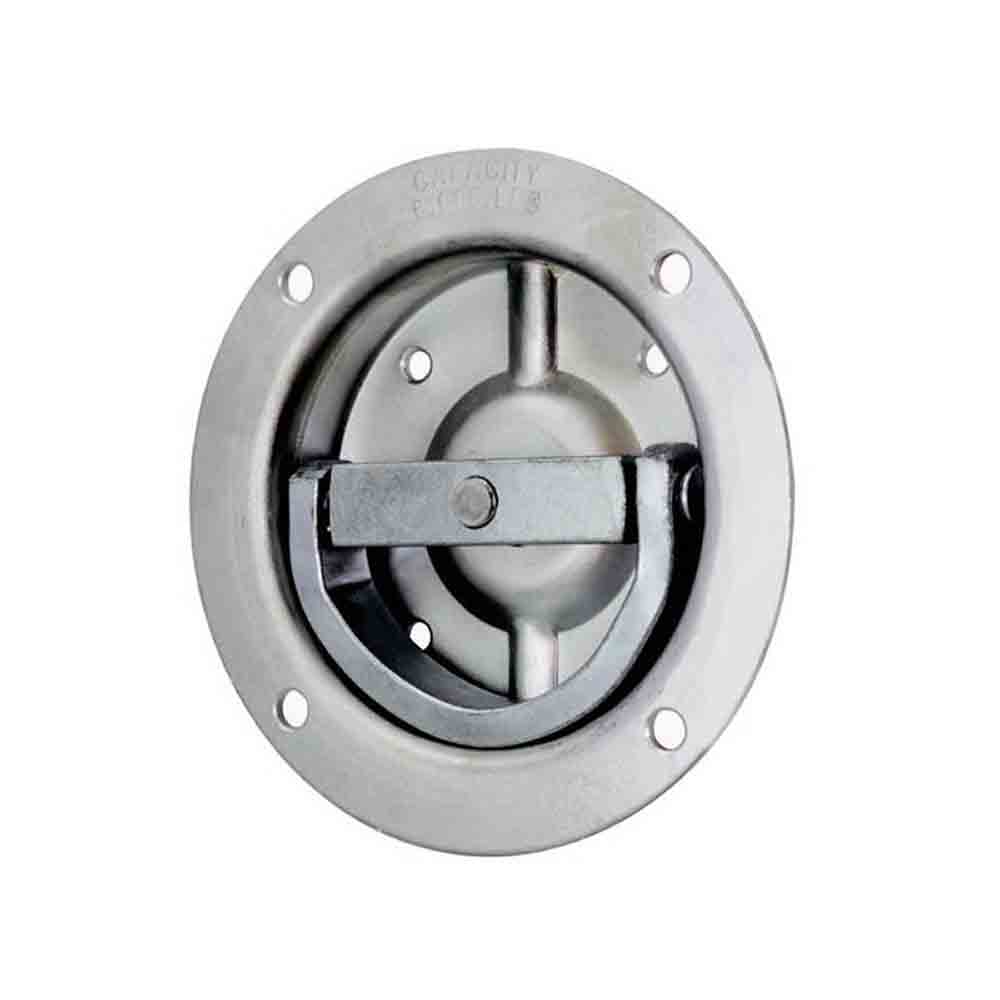

This heavy duty tie down ring features a recessed mount design. The outside diameter is 6.11". Four mounting holes form a 5.38" bolt circle. Unit is 1.08" deep. See picture 2 for more dimensions. Zinc plated to resist corrosion. Rated 2,000 pounds working load limit.

  • Per federal D.O.T. requirements, working load limit is 1/3 of the rated capacity
  • Recessed tie down rings pivot up when in use and down into pan for storage
  • Tie down pans are designed to mount flush to mounting surface making them ideal for trailers along with other applications
  • 360 degree rotating D-rings make for a versatile anchor point that rotates, allowing for anchoring a load in any direction
  • Zinc plated for corrosion resistance
  • Breaking load capacity of 6,000 lbs., working load limit of 2,000 lbs.
  • Backing plate and mounting hardware sold separately

Specifications

Specifications
Brand Sierra Pacific
Finish Zinc Plated
Diameter 6-1/8 inch
Breaking Strength 6,000 lbs.
Working Load Limit 2,000 lbs.
Mounting Style Bolt-On
