10-Pack - Recessed Zinc Plated Steel Tie-Down Ring
SKU
SP-890ZN-01-10
List Price:
$96.95
10-Pack - Recessed Zinc Plated Steel Tie-Down Ring
$85.05
In-Stock
Have a Question ? Talk to a specialist- Live chat or call 877-507-0944
10-Pack - Recessed Zinc Plated Steel Tie-Down Ring
Product Details

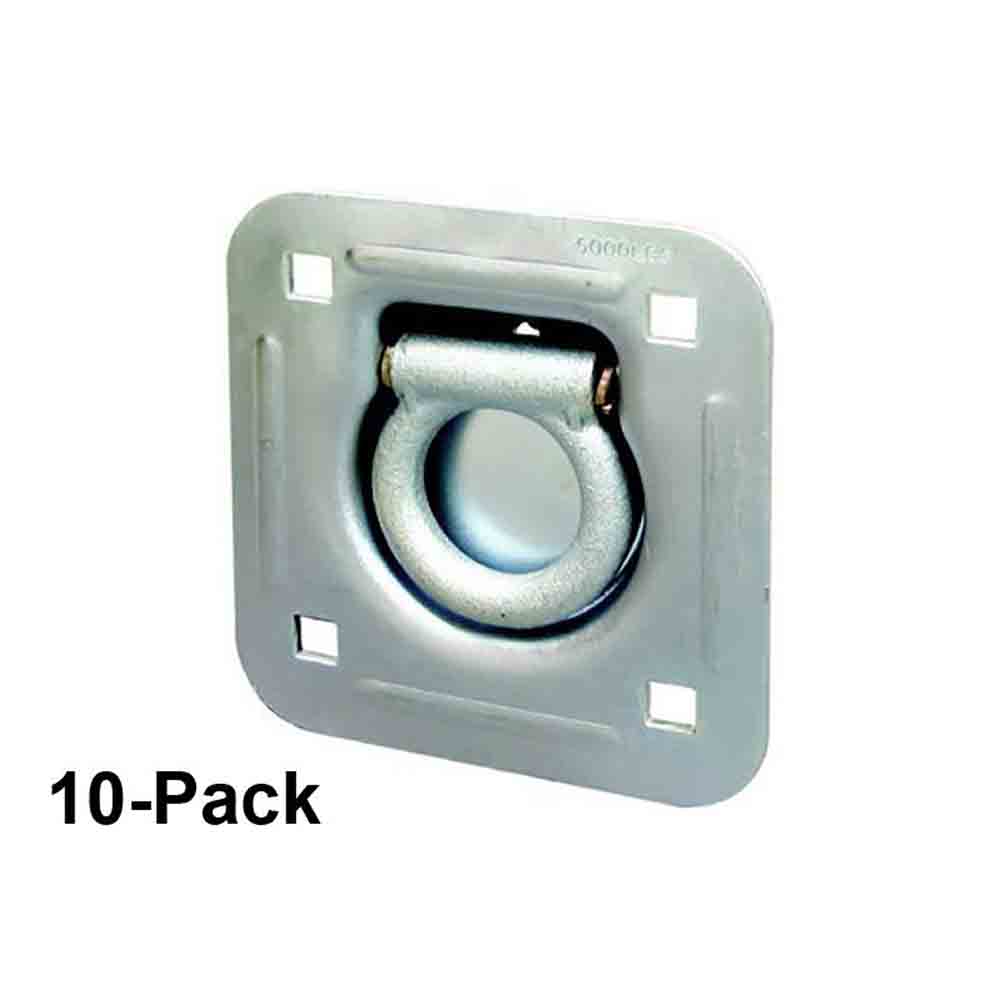

Recessed mounted Tie-Down Ring measures 4-1/2 inches square and attaches to floor or wall of trucks and enclosed trailers. Formed 1/8" steel pan houses a ductile iron ring. Use with 801-BP backing plate for added strength (sold separately). Zinc plated to resist corrosion. Rated 2,000 pounds working load limit. 10-Pack.
- Per federal D.O.T. requirements, working load limit is 1/3 of the rated capacity
- Formed 1/8" steel pan houses a ductile iron ring
- 3-5/8" diameter hole with 7/8" clearance below surface is required
- Square mounting holes for use with 3/8-16 x 2-1/4" carriage bolts (not included)
- Ultimate breaking strength: 6,000 lbs.
- Do not use for lifting
- Backing plate and mounting hardware sold separately
- Sold as a 10-Pack
Specifications
| Brand | Sierra Pacific |
|---|---|
| Finish | Zinc Plated |
| Width | 4-1/2 inch |
| Height | 4-7/8 inch |
| Breaking Strength | 6,000 lbs. |
| Working Load Limit | 2,000 lbs. |
| Mounting Style | Bolt-On |
