Buyers Products 50 Ton Air Compensated Pintle Hitch (With Chamber And Plunger) - 6 Hole Mount

Buyers

SKU
PH50AC
List Price: $561.03
$408.02
Out-Of-Stock
- +

Product ships FREE on orders over $99

Have a Question ? Talk to a specialist- Live chat or call 877-507-0944

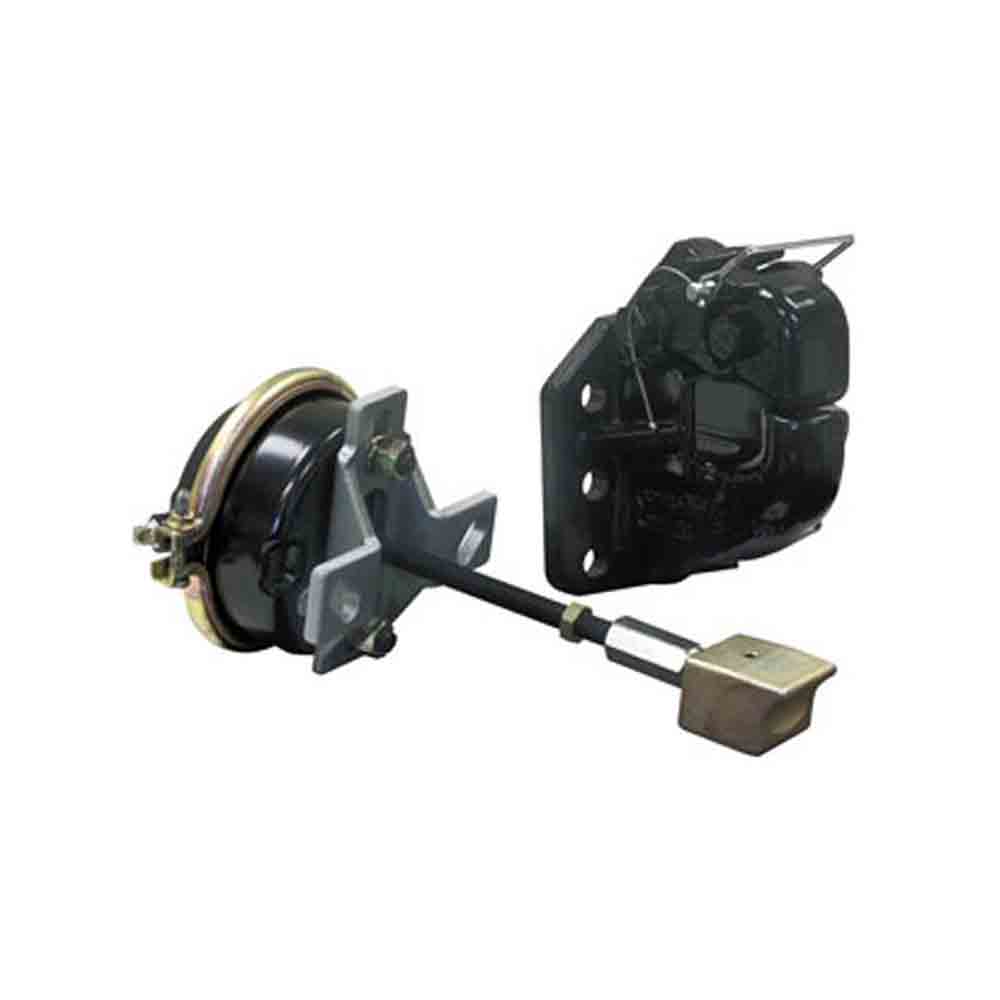

The 50 Ton Air Compensated Pintle Hitch from Buyers Products cushions movement between the pintle hook and tow ring. This saves wear and tear on the parts, as well as improves stability, especially in sudden motion or braking situations.

The 6 hole mount, bolt-on pintle hook works in tandem with the vehicle's air system to hold the drawbar eye closely to reduce wear, absorb shock, and prevent uncoupling during operation. The hook is ideal for heavy-duty applications such as semi trailers, both off- and over-the-road. This product can also be used without the air chamber and plunger as a standard pintle hook. For off-road use, the load should be reduced by 25% and a swivel type trailer drawbar should be used.

Product Details

This heavy duty 50 Ton Pintle Hook is made to mount on commercial truck body hitch plates only. It cannot be used with pintle mounts which install into receiver style hitches. The plunger provides minimum clearance with maximum shock absorption.



  • Reduces wear and tear on towing parts by reducing slack and movement
  • Makes for a more comfortable ride through shock absorption between the vehicle and trailer
  • Extremely strong austempered ductile iron construction
  • Durable corrosion-resistant powder-coated finish
  • Great for on- or off-road use
  • Spring-loaded pintle hook lock arm provides a secure hold on 2 -3/8 in. to 3 in. I.D lunette eyes
  • Tows up to 100,000 lb.



This item requires the purchase of (2) MK-134 bolt packs for installation.  See instruction sheet for mounting pattern.

Specifications

Specifications
Brand Buyers
Finish Black Powder Coat
Gross Towing Weight (WC) 100,000 lbs.
Tongue Weight 20,000 lbs.

Instructions

CLICK HERE
