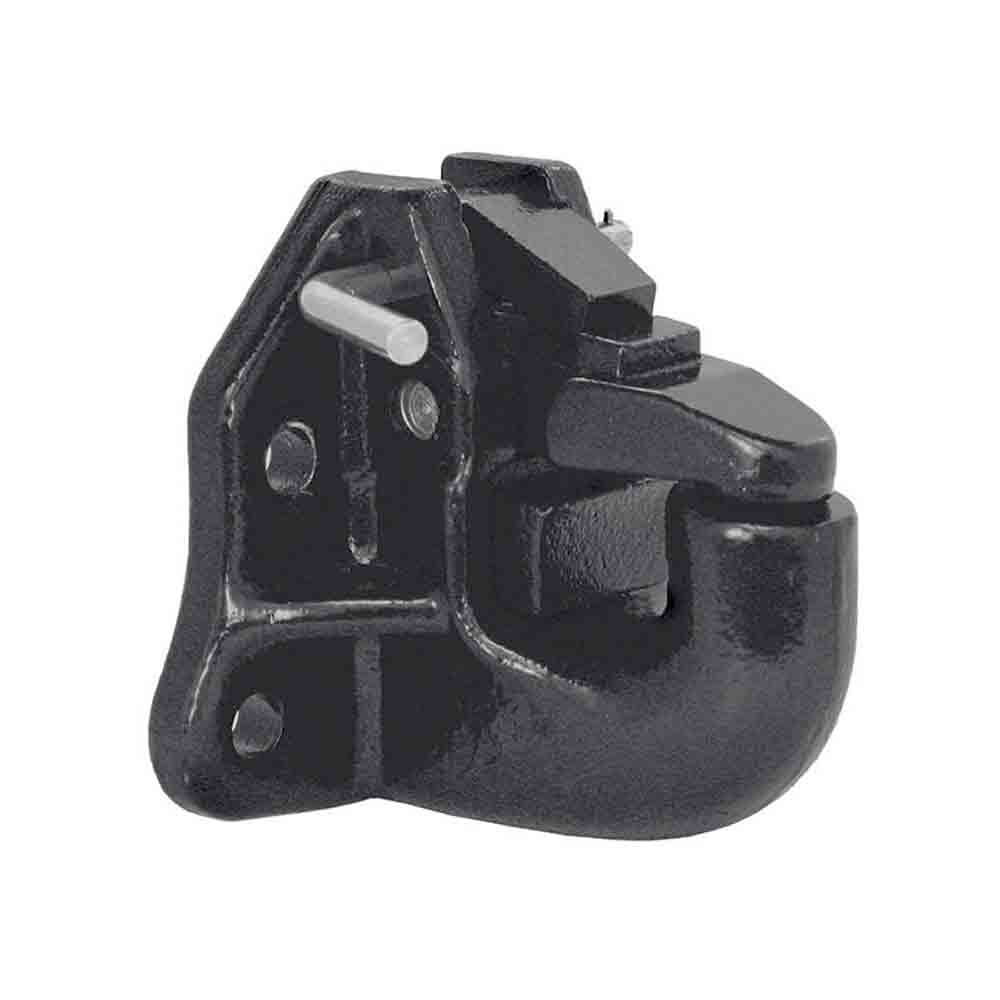

Buyers 45 Ton 4-Hole Air Compensated Pintle Hook Kit With Brake Chamber And Bracket
Have a Question ? Talk to a specialist- Live chat or call 877-507-0944
The 45 Ton Air Compensated Pintle Hitch with 4 Mounting Holes from Buyers Products cushions movement between the pintle hook and tow ring. This feature saves wear and tear on the parts, especially in sudden motion or braking situations.
The 4 hole mount, bolt-on pintle hook uses the vehicle's air system to hold the drawbar eye closely to reduce wear, absorb shock, and prevent uncoupling during operation.
The hook is ideal for heavy duty applications such as semi trailers, both off-road and over-the-road.
Product Details
This heavy duty 45 Ton Pintle Hook is made to mount on commercial truck body hitch plates only. It cannot be used with pintle mounts which install into receiver style hitches. The plunger provides minimum clearance with maximum shock absorption. 3/4 inch mounting hardware required - sold separately.
Reduces wear and tear on towing parts by reducing slack and movement.
Makes for a more comfortable ride through shock absorption between the vehicle and trailer.
Extremely strong austempered ductile iron construction.
Durable corrosion-resistant powder-coated finish.
Tows up to 90,000 lb.
Spring-loaded pintle hook lock arm provides a secure hold on 2-3/8 in. to 3 in. I.D lunette eyes and drawbars.
Warning: This hitch must be used with an air brake chamber. Please see the instruction sheet for dimensions and mounting requirements.
Specifications
| Brand | Buyers |
|---|---|
| Finish | Black |
| Gross Towing Weight (WC) | 90,000 lbs. |
| Mounting Bolt Pattern | 3 inch x 5-1/4 inch |
| Tongue Weight | 18,000 lbs. |
