6,000 lb. Drop Axle Assembly with Brake Flanges & 8-Bolt on 6-1/2 Inch Hubs - 89-1/2 Inch Hub Face

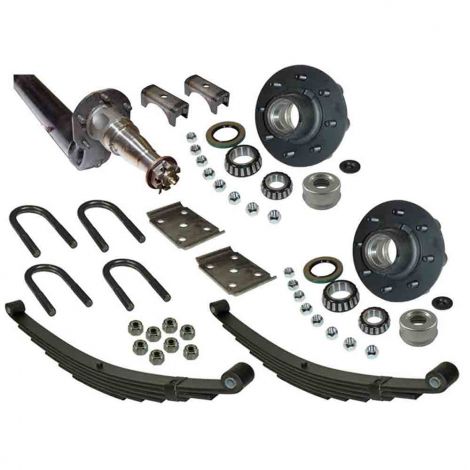

6,000 lb., 4" drop trailer axle assembly includes axle tube with spindles, castle nuts and cotter pins, flanges for mounting drum or disc brakes (not included), cast iron 8 stud on 6-1/2 inch bolt circle hubs with bearings, seals, grease caps and lug nuts, double eye leaf springs with U-bolts, nuts and tie plates. Axle tube is 3" diameter x 3/16" wall round tubing. Axle is supplied with loose spring seats which must be welded to the axle tube to complete the installation.

Axles are manufactured with a slight camber (arch). When attaching spring seats, axle must be positioned with the arch at the top of the axle.

• Axles may be special ordered with hub face widths from 24 to 94 inches. Please contact customer service.
• Includes (2) 8 on 6-1/2 inch studded hubs with bearings, seals and grease caps
• Spring seats are shipped loose and must be welded to the axle to complete the installation
• Includes double eye springs with U-bolts, tie plates and lock nuts
• 1-3/4 inch x 1-1/4 inch tapered spindles with castle nuts and cotter pins
• Axle includes flanges for mounting drum brakes (sold separately)
