2200 LB Axle Tube - 70 IN
SKU
LM-2270
List Price:
$189.54
2200 LB Axle Tube - 70 IN
$127.58
In-Stock
Have a Question ? Talk to a specialist- Live chat or call 877-507-0944
AXLE TUBE - 2200 LB - 70 IN
Product Details

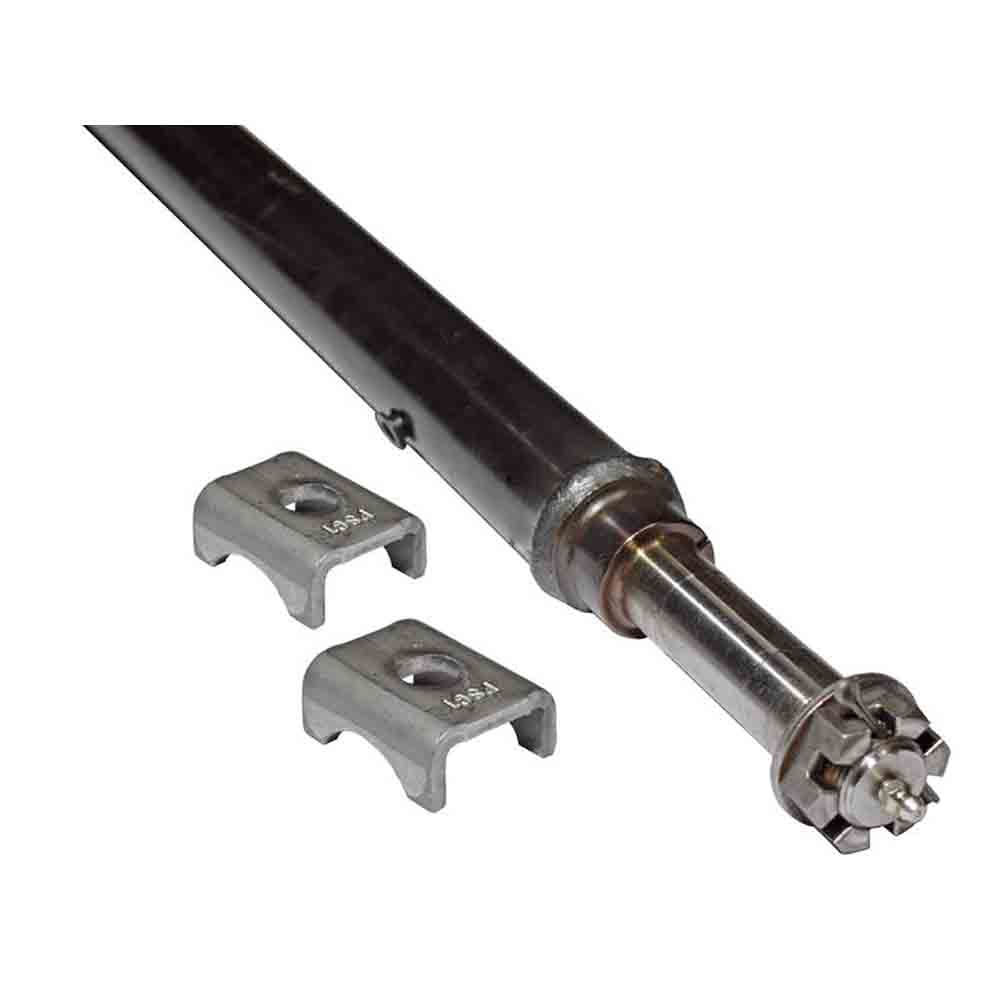

2,200 lb. straight trailer axle tube with spindles, castle nuts and cotter pins. Axle tube is 1-3/4" diameter x 3/16" wall round tubing. This axle DOES NOT include flanges for mounting electric or hydraulic brakes. May be used with 4 or 5-lug hubs, sold separately. Axle is supplied with loose spring seats which must be welded to the axle tube to complete the installation.
Axles are manufactured with a slight camber (arch). When attaching spring seats, axle must be positioned with the arch at the top of the axle.
- Axles may be special ordered with hub face widths from 24 to 94 inches. Please contact customer service.
- Spring seats are shipped loose and must be welded to the axle to complete the installation
- 1-1/16 straight spindles with castle nuts and cotter pins
- Used on boat trailers, tent campers, utility and snowmobile trailers
Specifications
| Brand | Lippert |
|---|---|
| Capacity | 2,200 lbs. |
| Mount Width | 68 to 74 inch |
| Overall Width | 88-1/2 inch |
| Seal Surface Diameter | 1.50 inch |
| Spring Seats | Loose |
| Width At Hub Face | 84 inch |
