Trailer Hub And Drum Assembly 6 On 5-1/2" Bolt Circle, 3,000 Lbs. Capacity For 1-3/4" To 1-1/4" Tapered Spindles W/ EZ Lube Cap & Plug (HD-1206HD-02-EZ)
Have a Question ? Talk to a specialist- Live chat or call 877-507-0944
Trailer Hub for 1-3/4" To 1-1/4" Tapered Spindles for a 5,200 lbs. to 6,000 lbs. Axle. For use with 12" x 2" electric or hydraulic brakes. Sold as Single with a 3,000lb Capacity per Hub.
Product Details
12" Hub and Drum has 6 on 5-1/2" bolt circle for 1-3/4" To 1-1/4" tapered spindle for a 5,200 lbs. to 6,000 lbs. axle 3,000 lbs. capacity hub. Includes pressed in bearing races with a pilot diameter is 3.63". Lugs are 1/2"-20.
2-1/2" deep inside for use with 12" x 2" electric or hydraulic brakes.

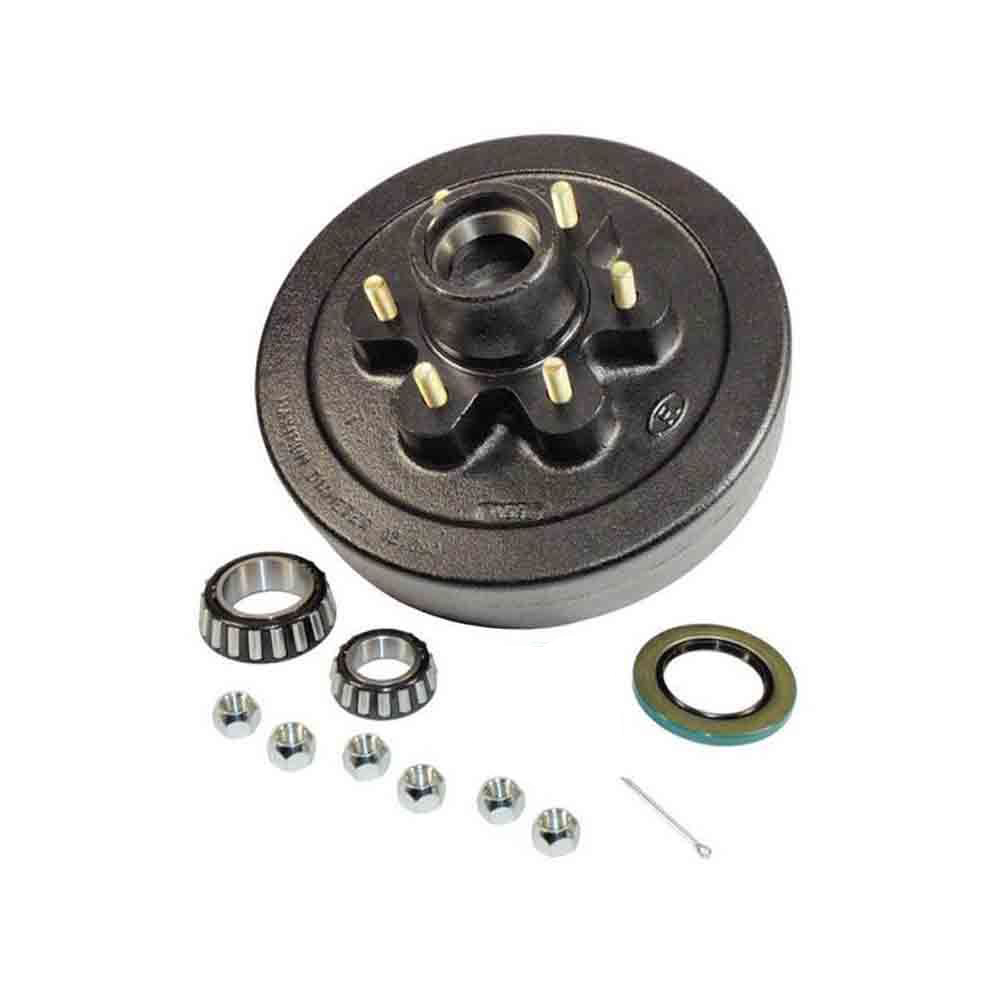

Hub assembly includes:
L-25580 Inner Bearing,
L-15123 Outer Bearing,
SL-213 Grease Seal,
SCP-100 Cotter Pin,
EZ Lube Dust Cap & Plug
(6) 1/2"-20 STN-506 Lug Nuts
NOTE: This kit does not include the castle nut. You must use your existing nut for installation.
Specifications
| Brand | TRP |
|---|
