Trailer Hub And Drum Assembly W/ EZ Lube Grease Cap & Plug, 4 On 4" Bolt Circle, 1,250lb Capacity For 1" Straight Spindles (HD-700A-04-EZ)
Have a Question ? Talk to a specialist- Live chat or call 877-507-0944
Trailer Hub and Drum for 1" Straight Spindles for a 2,000lb axle. For use with 7" electric or hydraulic brakes. Sold as Single with a 1,250lb Capacity per Hub. Complete assembly with Bearings, Seal, Dust Cap, Cotter Pin and Lug Nut.
Product Details
7" Hub and Drum has 4-bolt pattern on 4" circle for a 2,000lb axle with hub capacity of 1,250lbs. Includes pressed in bearing races with a pilot diameter 2.5", flange diameter 5.56" and measures 4-1/4" tall. -1/2"-20 lugs.
2" deep inside for use with 7" electric or hydraulic brakes.

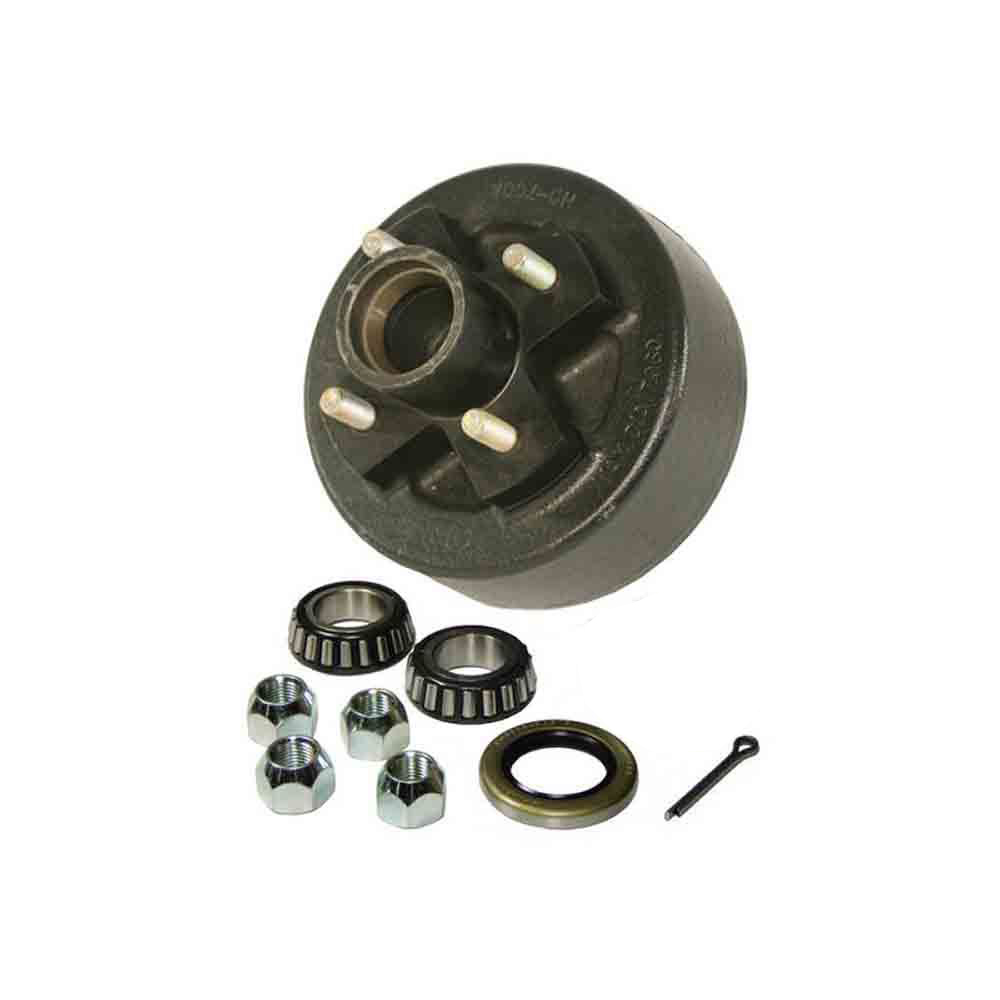

Hub assembly includes:
(2) L-44643 (1" I.D.) Inner and Outer Bearings,
SL-122 (1.249" I.D.) Grease Seal,
SCP-100 Cotter Pin,
EZ Lube Dust Cap & Plug,
(4) STN-506 Lug Nuts (1/2"-20)
NOTE: This kit does not include the castle nut. You must use your existing nut for installation.
Specifications
| Brand | TRP |
|---|
