Trailer Hub and Drum Assembly 6 on 5-1/2" Bolt Circle, 3,000 lbs. Capacity for 1-3/4" To 1-1/4" Tapered Spindles
SKU
HD-1206HD-02A
List Price:
$135.24
Trailer Hub and Drum Assembly 6 on 5-1/2" Bolt Circle, 3,000 lbs. Capacity for 1-3/4" To 1-1/4" Tapered Spindles
$102.18
In-Stock
Have a Question ? Talk to a specialist- Live chat or call 877-507-0944
Trailer Hub for 1-3/4" To 1-1/4" Tapered Spindles for a 5,200 lbs. to 6,000 lbs. Axle. For use with 12" x 2" electric or hydraulic brakes. Sold as Single with a 3,000lb Capacity per Hub.

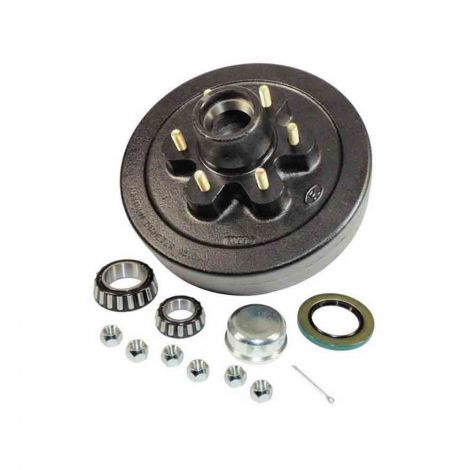

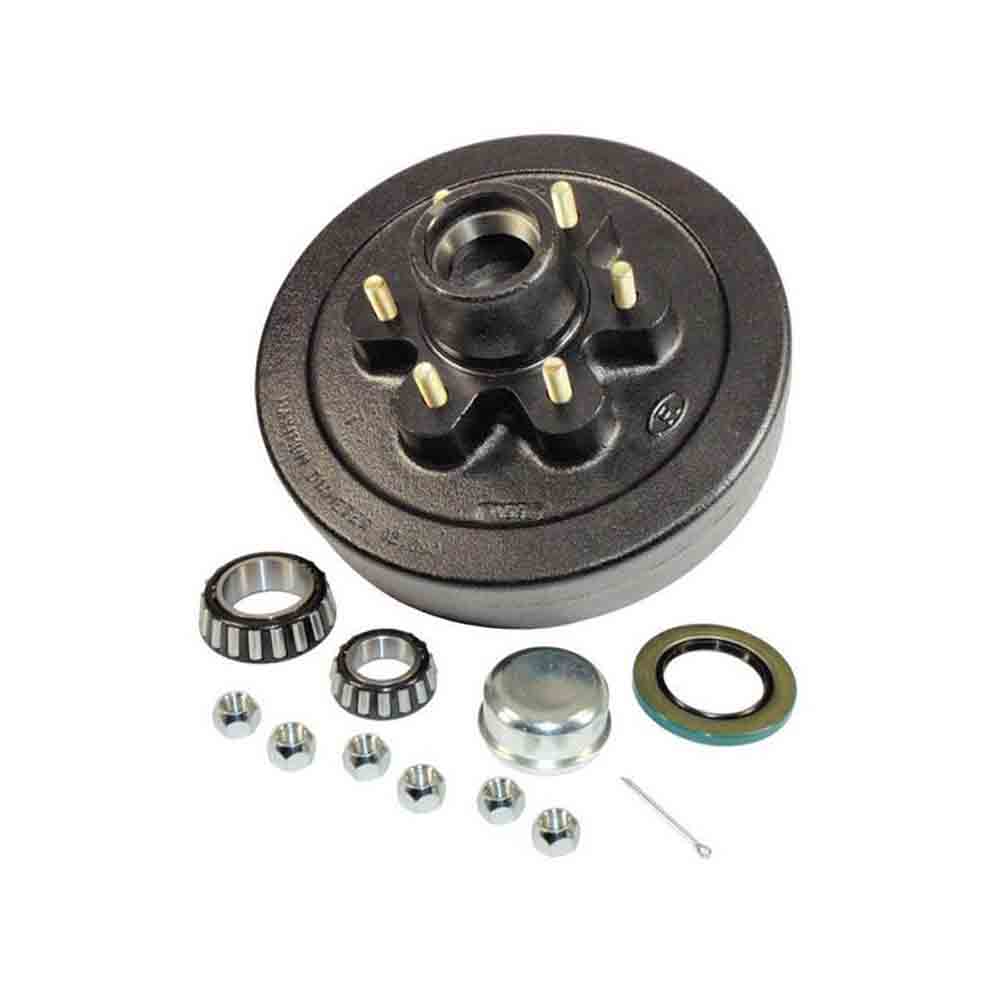

Complete Assembly with Bearings, Seal, Dust Cap, Cotter Pin, and Lug Nuts
Product Details
12" Hub and Drum has 6 on 5-1/2" bolt circle for 1-3/4" To 1-1/4" tapered spindle for a 5,200 lbs. to 6,000 lbs. axle 3,000 lbs. capacity hub. Includes pressed in bearing races with a pilot diameter is 3.63", flange diameter is 7.5". Lugs are 1/2"-20.
2-1/2" deep inside for use with 12" x 2" electric or hydraulic brakes.
Hub assembly includes:
Specifications
| Brand | TRP |
|---|---|
| Bolt Pattern | 6 x 5.5 |
| Capacity | 3,000 lbs. |
| Depth | 2-1/2 inch |
| Inside Diameter | 12 inch |
| Thread | 1/2-20 |
