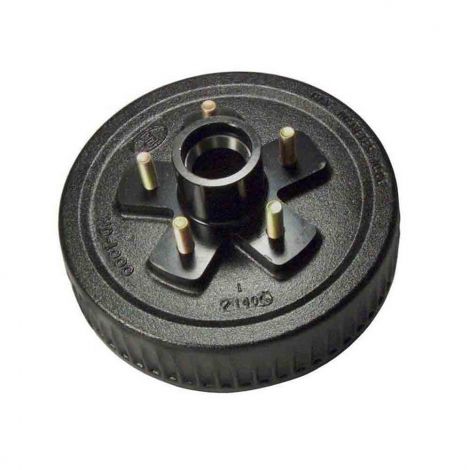

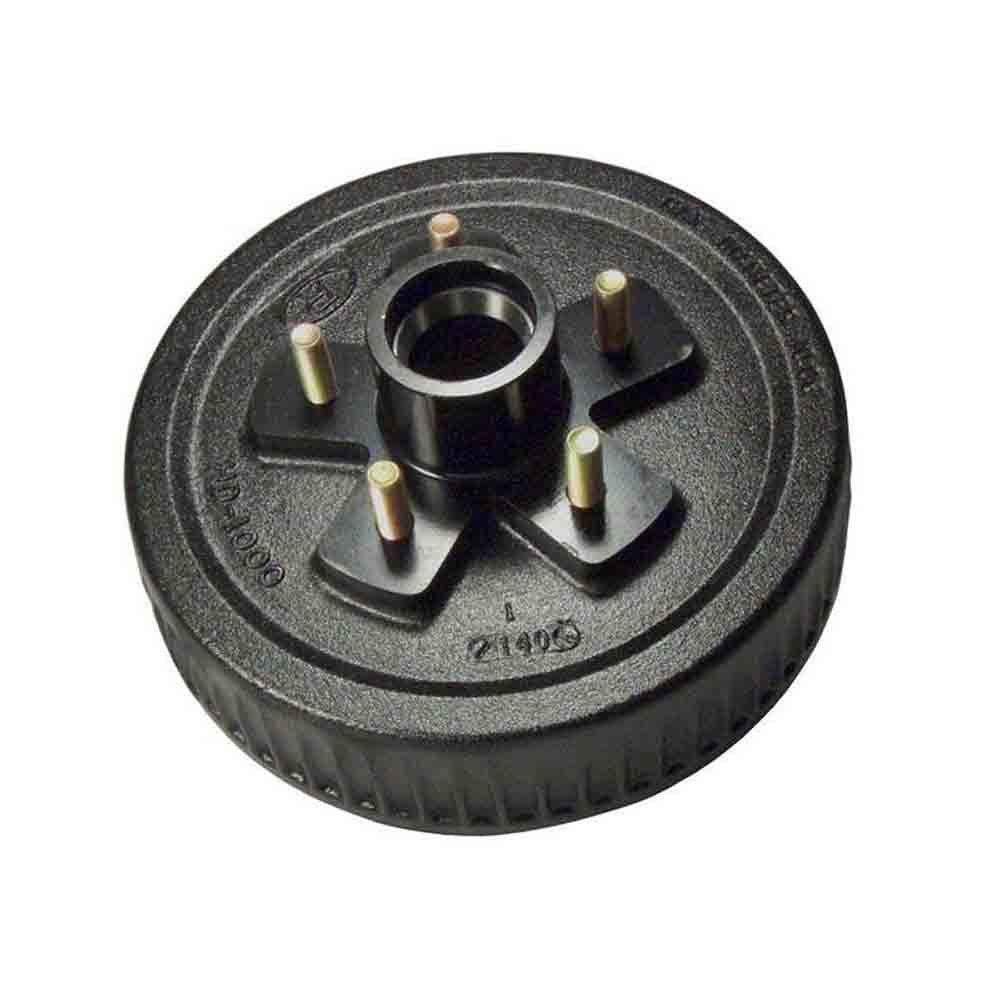

Trailer Hub And Drum, 5 On 4-1/2" Bolt Circle, 1,750 lb. Capacity For 1-3/8" to 1-1/16" Tapered Spindle

Product Details

10" Hub and Drum has 5 on 4-1/2" circle for a 1-3/8" To 1-1/16" tapered spindles for a 3,500lb axle with a hub capacity of 1,750lbs. Includes pressed in bearing races with a pilot diameter 2.59", flange diameter 6.5". 1/2"-20 lugs.

2" deep inside for use with 10" x 2" electric or hydraulic brakes.

Not Included:



Specifications

Specifications
Brand trp
Bolt Pattern 5 x 4.5
Capacity 1,750 lbs.
Depth 2-1/2 inch
Inside Diameter 10 inch
Thread 1/2-20
