SKU
HD-1000-03-A
List Price:
$94.00
Trailer Hub and Drum Assembly 5 on 5" Bolt Circle, 1,750lb Capacity for Tapered Spindle
$71.02
In-Stock
Have a Question ? Talk to a specialist- Live chat or call 877-507-0944
Trailer Hub and Drum for 1-3/8" To 1-1/16" Tapered Spindles for a 3,500lb Axle. For use with 10" x 2" electric or hydraulic brakes. Sold as Single with a 1,750lb Capacity per Hub.

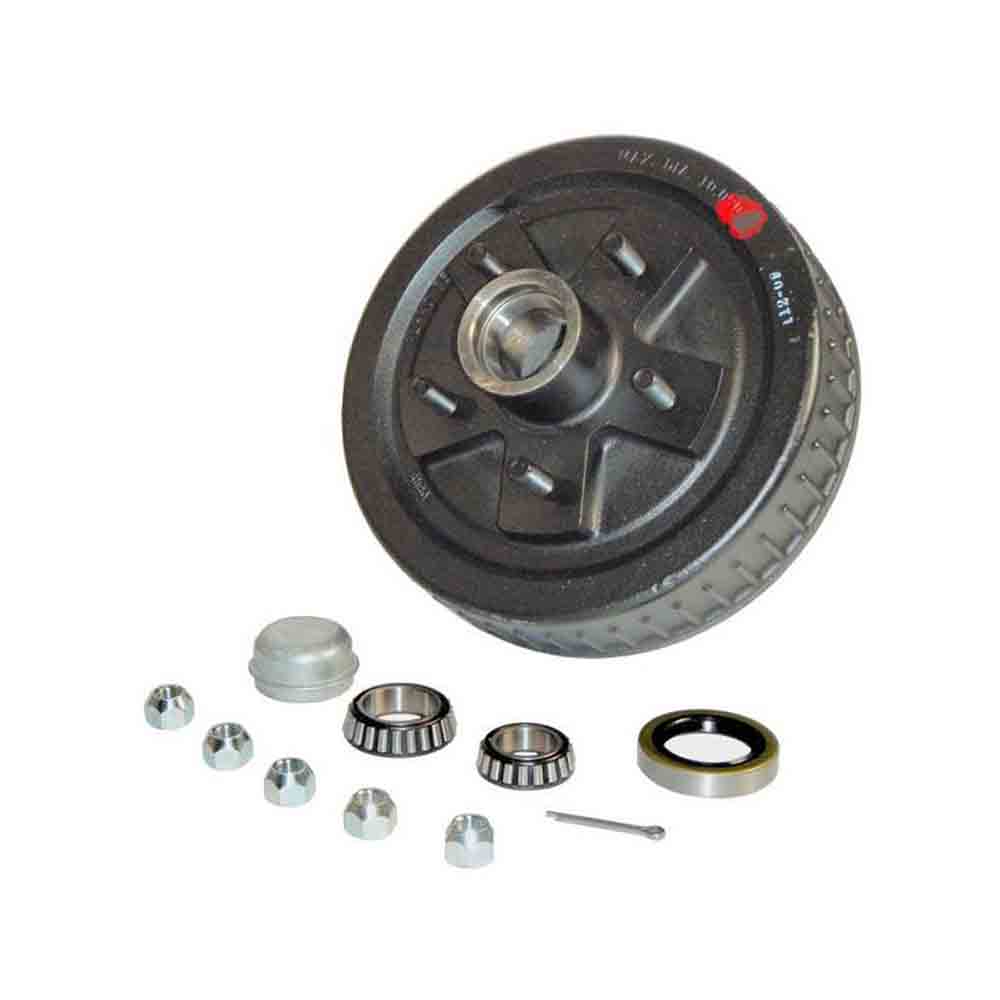

Complete Assembly with Bearings, Seal, Dust Cap, Cotter Pin, and Lug Nuts
Product Details
10" Hub and Drum has 5 on 5" bolt circle for a 1-3/8" To 1-1/16" tappered spindle for 3,500lb axle with a hub capacity of 1,750lbs. Includes pressed in bearing races with a pilot diameter 2.59 inches, flange diameter 6.5 inches.
2" deep inside for use with 10" x 2" electric or hydraulic brakes.
Hub assembly includes:
Specifications
| Bolt Pattern | 5 x 5 |
|---|---|
| Capacity | 1,750 lbs. |
| Depth | 2-1/2 inch |
| Inside Diameter | 10 inch |
| Thread | 1/2-20 |
