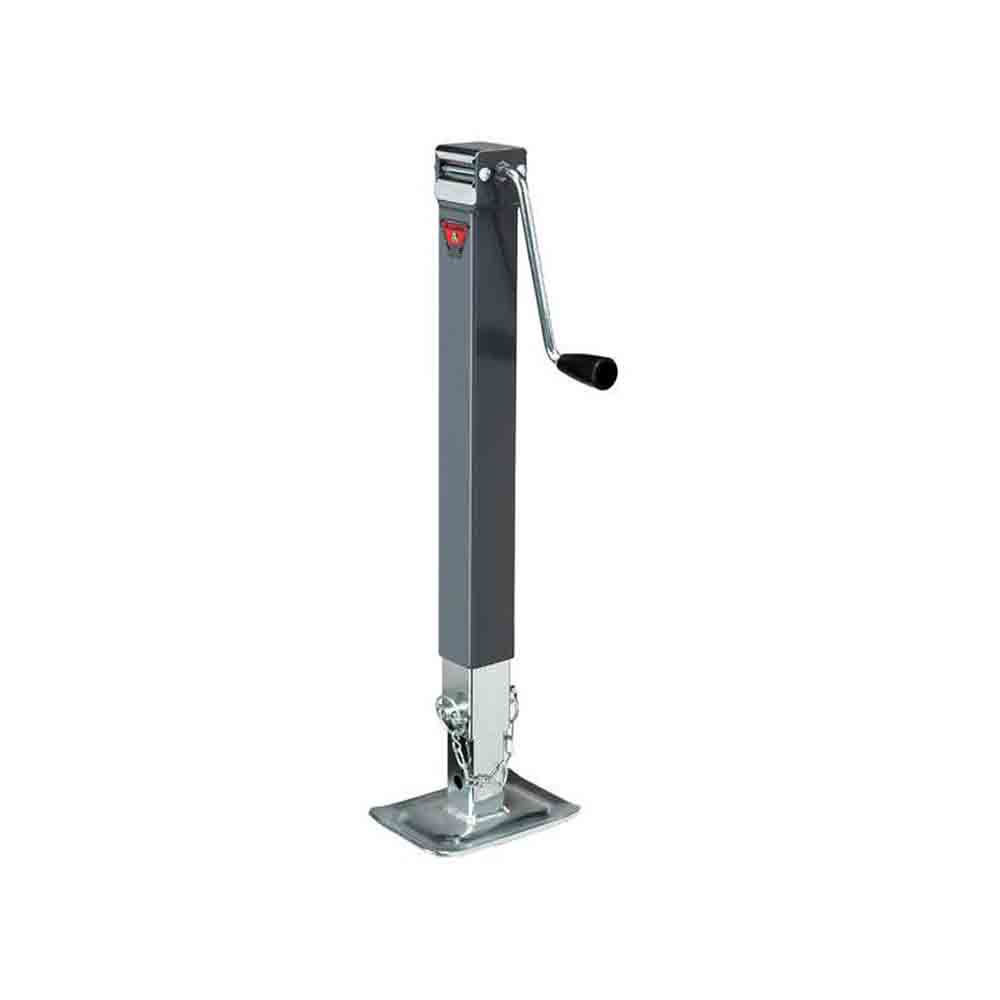

Bulldog Square Trailer Jack, No Mount, 8,000 lbs. Support Capacity, Side Wind, Weld-On, 15 in. Travel
SKU
HB-190754
List Price:
$287.95
Bulldog Square Trailer Jack, No Mount, 8,000 lbs. Support Capacity, Side Wind, Weld-On, 15 in. Travel
$117.83
Out-Of-Stock
Have a Question ? Talk to a specialist- Live chat or call 877-507-0944
BULLDOG's 8,000 lbs. support capacity square jack serves the agricultural, industrial, construction, horse/livestock trailer, and utility/cargo trailer markets. The compact design of these jacks makes them ideal for tight-fitting applications where 3" and 4" square tube jacks are too big!
Product Details
Bulldog Sidewind Square Jack HD
- 15" Travel
- 5,000 lbs. Lift Capacity
- Bulldog model number SWL 190 DL-BQ
- Direct weld model - no mounting bracket needed
- Gray painted outer tube with zinc plated inner tube
- Drop leg offers 13.5 inches of additional adjustment
- Sidewind models - 1/4" cross pin connects gear train to screw stem - guards against shearing jack pin
- Sidewind models - 1:1.33 gear ratio
- Similar to Ram Jack TJD-7000-S
Specifications
| Brand | Bulldog |
|---|---|
| Jack Type | Side Wind |
| Extended B | 53.56 inch |
| Finish | Gray |
| Lift Capacity | 5,000 lbs. |
| Mounting | Weld on |
| Retracted A | 25.06 inch |
| Support Capacity | 8,000 lbs. |
| Travel | 15 inch |
