Square 12K Jack
SKU
HB-182400
List Price:
$520.95
Square 12K Jack
$216.48
In-Stock
Have a Question ? Talk to a specialist- Live chat or call 877-507-0944

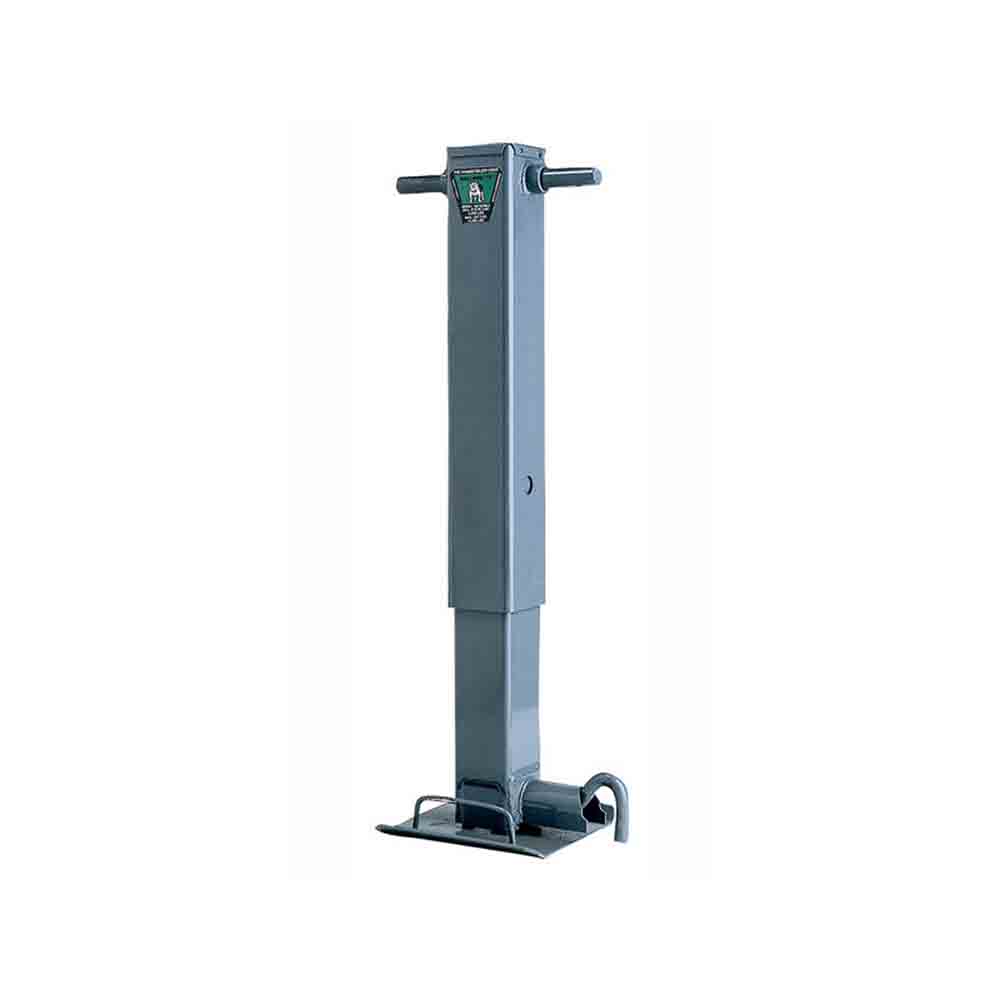

JACK - SQUARE 12K - BULLDOG
Product Details
Bulldog square jack has carried the load in agricultural, construction, heavy-duty utility, and horse/livestock trailer industries. The strength of the product, plus the wide variety of styles, makes this jack the best choice in its product class.
- 12.5" Travel
- 10,00LB Capacity
- Mounting is done by direct weld
- Bulldog model number SWQ 180 DL-B
- Drop leg option with 5 positioning holes
- Painted outer tube, inner tube and drop leg
- 4" square tubing, 7-gauge superior alloy steel
- Includes jack foot plate - crank handle sold separately
- 12.5" screw travel, 13.5" of additional adjustment with drop leg
- Easy-access gear box with grease fitting for routine maintenance
Specifications
| Brand | Bulldog |
|---|---|
| Extended B | 53.3 inch |
| Finish | Gray |
| Lift Capacity | 10,000 lbs. |
| Retracted A | 27.4 inch |
| Support Capacity | 12,000 lbs. |
| Travel | 12-1/2 inch |
