Curt Spectrum Integrated Proportional Trailer Brake Controller


List Price: $386.95
- +

Product ships FREE on orders over $99

Have a Question ? Talk to a specialist- Live chat or call 877-507-0944

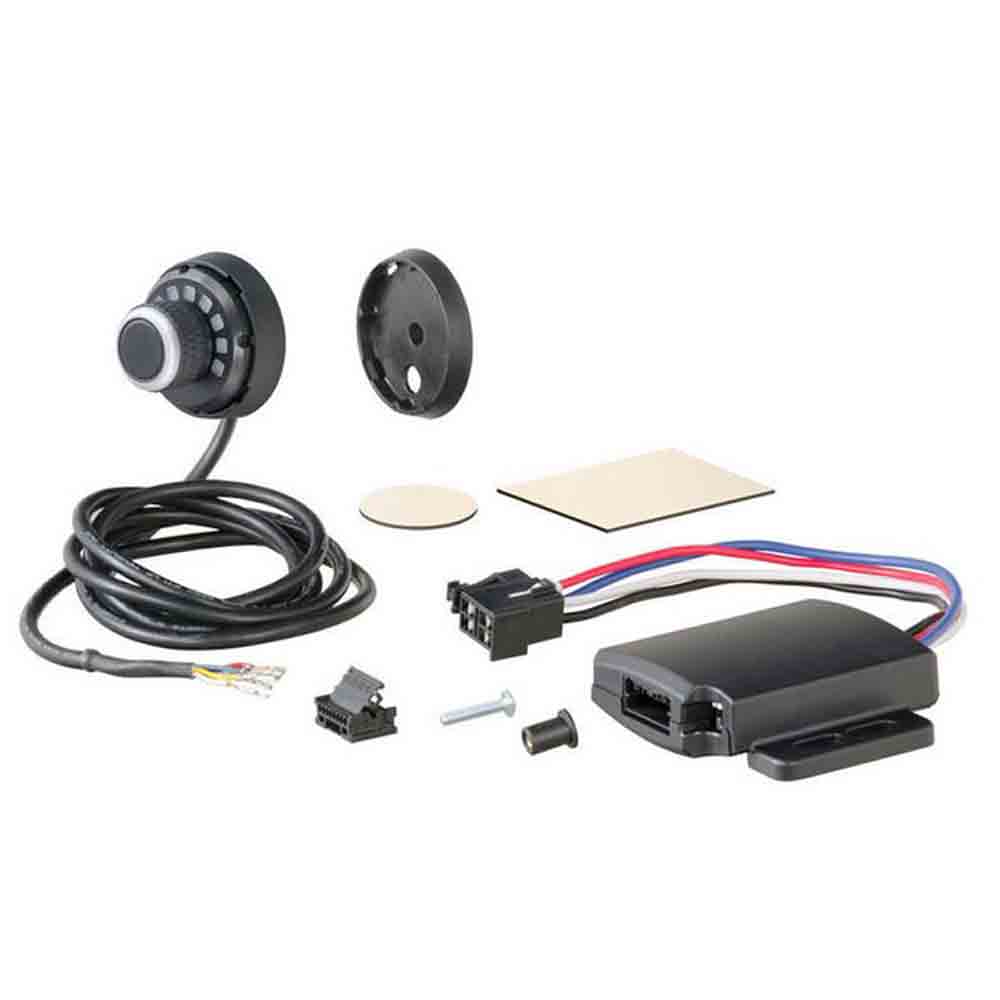

The CURT Spectrum trailer brake controller gives you powerful, precise braking operation in an extremely simple and subtle design inside your vehicle. It features an LED-equipped, rotary knob interface and a separate main module with an advanced accelerometer. This allows for an OE look and feel to be maintained inside the cab of your vehicle. The separated design of the Spectrum brake controller allows the main module to be mounted behind the dash of the vehicle, completely out of sight. Meanwhile, the compact, unobtrusive interface can be fully integrated into the dash with just a single hole.

Product Details

The interface of the Spectrum is a single rotary knob with a push-button in the center that allows the driver to adjust brake power output. It is equipped with ten tri-color LEDs (red, blue and green) to show the automated power output of the control. There is no need for a separate display or additional controls, keeping the dash of your vehicle clean, professional and uncluttered.


Behind the Spectrum brake controller is a powerful main module with a triple-axis motion-sensing accelerometer. This advanced circuit is able to detect the inertia of the vehicle and trailer on all axes of three-dimensional space. The main module can be mounted with the included mounting brackets or adhesive patch.


The Spectrum electric brake controller is a fully compatible unit, able to operate up to eight trailer brakes at a time. It can be used on vehicles with ABS brakes and cruise control, and it works with low-voltage and PWM systems.


The wiring harnesses are vehicle-specific and plug into any CURT brake controller for a custom-fit installation in the vehicle. The Spectrum also has automatic leveling and calibration features to simplify the setup process.

Fits: 2, 4, 6, and 8 brake trailers

  • Not recommended for use with BMW X5 Sport Utility Vehicles
  • Controls all brake settings with a simple push-button rotary knob
  • Clean, dash-mounted, OEM-style user interface with 10 tri-color LEDs
  • Main module can be mounted anywhere, at any orientation, out of sight
  • Highly responsive, smooth stops with triple-axis, motion-sensing accelerometer
  • Easily accessible manual override with the press of a button
  • Features two installation options: drill mount or surface adhesive mount
  • Equipped with a quick plug for easy, plug-and-play installation
  • Compatible with low voltage or pulse width modulation (PWM) systems. Built-in reverse-polarity and short-circuit protection.
  • User-selectable power output and trailer brake light activation. Tow vehicle 'low voltage' and trailer disconnect indicators.
  • Automatic leveling and calibration eliminate setup requirements and is compatible with ABS and cruise control


Click Here to find a custom fit brake control harness for your vehicle.


Brand Curt
Voltage 12V DC
