The first trailer tongue cargo carrying system! Adjustable to fit most A-frame trailers on the road today. Your tow vehicle's suspension guarantees this is the softest riding area on your trailer. Supports up to 300 lbs. Once installed and adjustments are made, four holes need to be drilled through the round tube to permanently fix the Trailer Tray in place. All hardware is included.
Adjust able to fit most A-frame trailers
Supports up to 300 lbs.
All installation hardware is included

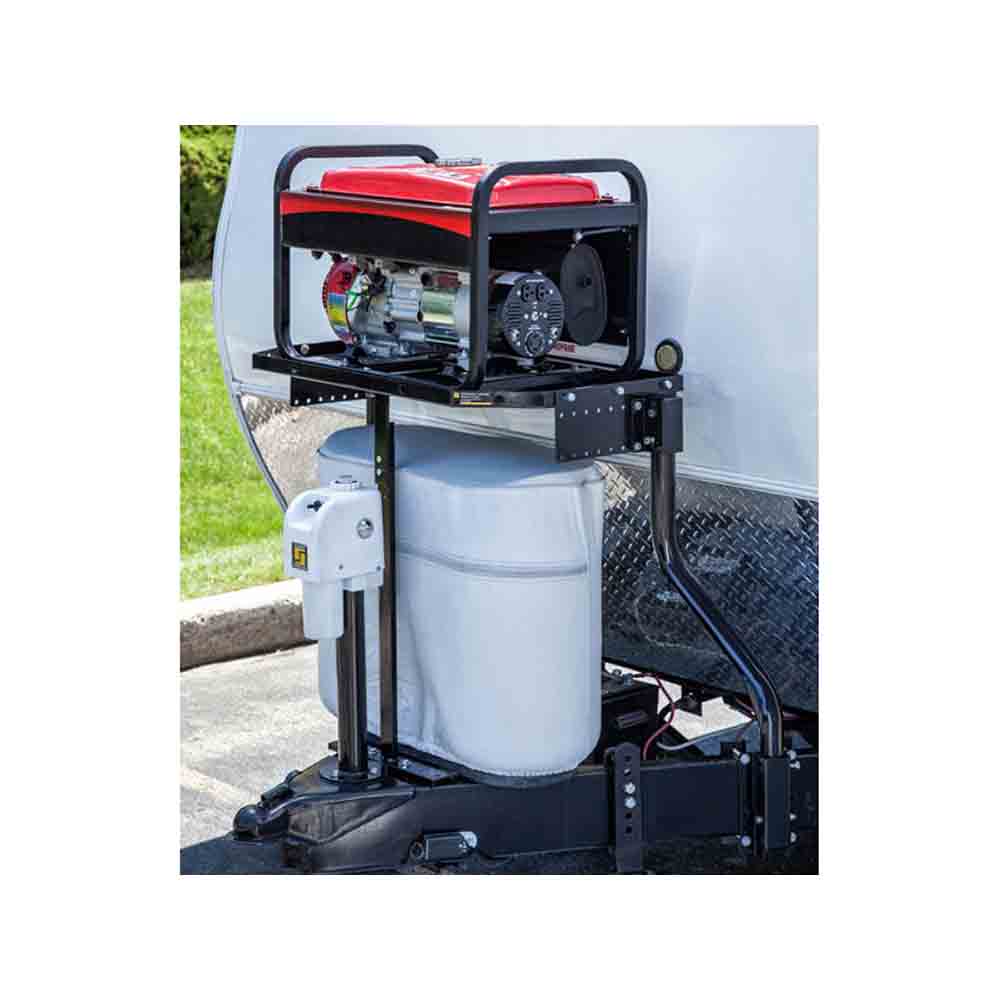

Use the Trailer Tray to haul generators, coolers, compressors and more
Some drilling is required for installation
Appx. 30-5/8 from top of A-frame to top of tray. Appx. 29-1/2 from top of A-frame to bottom of tray. This distance is designed to accommodate up to a 30 lb standard LP tank. Due to bent design on vertical tubes, tray brackets can be mounted on your A-frame at widths varying from 14 to 55 (Note: you may need to modify the front support plate to accommodate increased width mounting).
Please note, if you have propane tanks installed at the intended tray location, one of three things can be done to allow you to remove your tanks for refill or to access valves without removing the tray.
Replace your existing cover with a soft vinyl cover, allowing access to your LP valves or to remove LP tanks without having to remove the cross bar.
Replace your existing cover with a flip-top hard plastic cover to access your LP valves. You will need to remove the cross bar to remove cover and refill LP tanks.
Leave the tank cover off for direct access to your LP tanks.
