Trailer Hub Assembly - 5 on 4-1/2" Bolt Circle, 1,250lb Capacity for 1-1/16" Straight Spindle - Pair
Have a Question ? Talk to a specialist- Live chat or call 877-507-0944
Trailer Hub for 1-1/16" Straight Spindles for a 2,000lb Axel. Sold as Single with a 1,250lb Capacity per Hub.

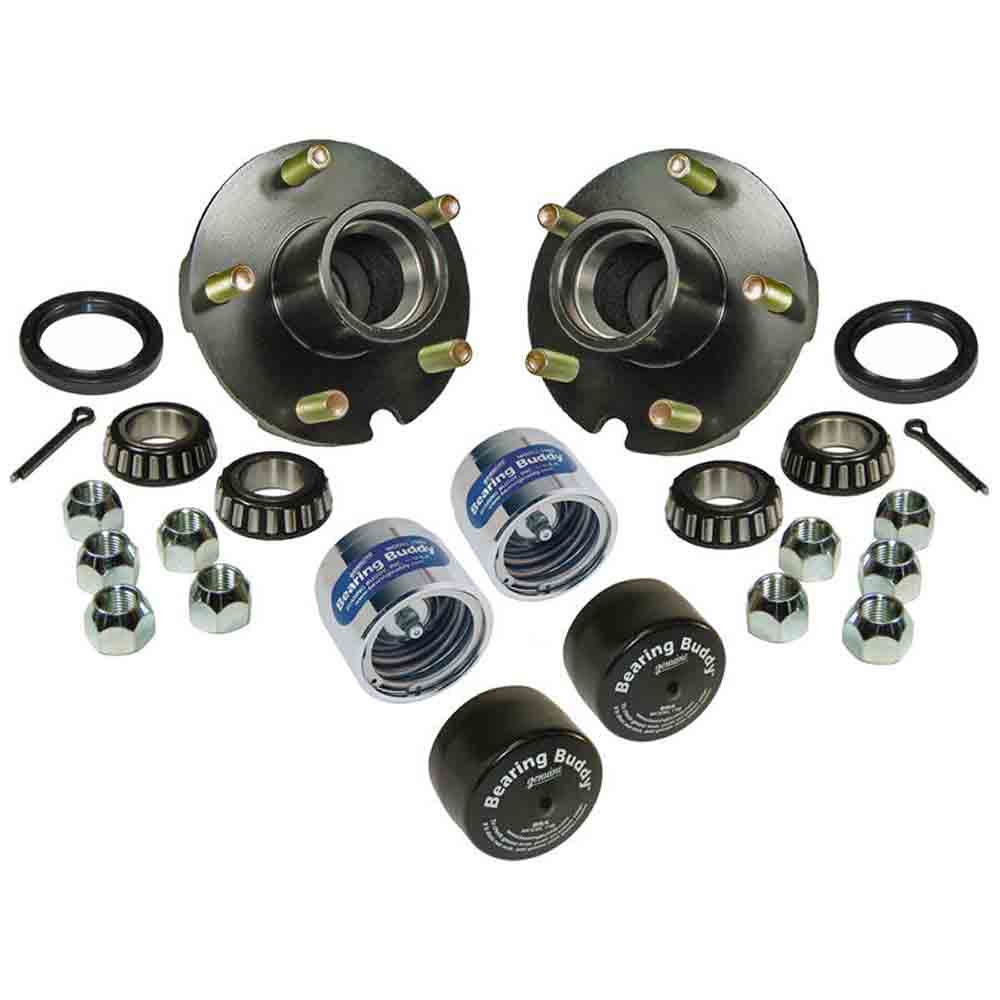

Complete Assembly with Bearings, Seal, Dust Cap, Cotter Pin, Lug Nuts, and Chrome Bearing Buddies & Bras
Product Details
Hub has 5 on 4-1/2" bolt circle for a 2,000lb axle with a hub capacity of 1,250lbs. Includes pressed in bearing races with a pilot diameter 2.5", flange diameter 5.56" and is 4-1/4" tall.
With Bearing Buddy Bearing protectors (with bras) provide protection against damage from water and dirt entering the wheel bearings and make lubricating bearings a snap
This kit provides grease seals to work with axles that have 1.25" OR 1.50" seal surfaces.
* Grease seal may vary in construction (metal ring or rubber ring) - dimensions are the same and either version will work equally well.
Hub assembly includes:
- (2) L-44649 Inner and Outer Bearings,
- (1) SL-150-1 (1.50" I.D.) and (1) SL-122 (1.25" I.D.) Grease Seals,
- SCP-100 Cotter Pin,
- (5) STN-506 Lug Nuts
- (2) B-42102-19B Bearing Buddy's with Bras
Specifications
| Bolt Pattern | 5 x 4.5 |
|---|---|
| Capacity | 2,200 lbs. |
| Thread | 1/2-20 |
