Tie-Down Ring with Backing Plate

Buyers

SKU
BBP-801
List Price: $22.76
$14.23
In-Stock
- +

Product ships FREE on orders over $99

Have a Question ? Talk to a specialist- Live chat or call 877-507-0944

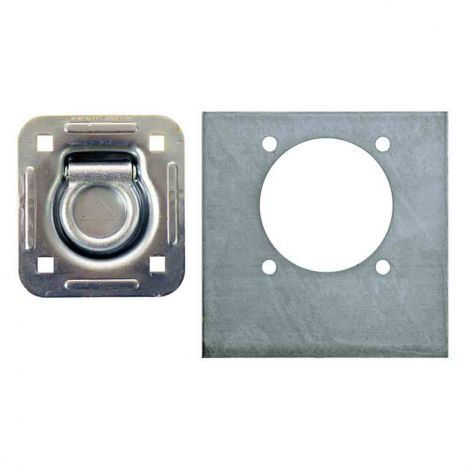

Tie-Down Ring & Backing Plate

Product Details

Recessed mounted Tie-Down Ring measures 4-1/2 inches square and attaches to floor or wall of trucks and enclosed trailers. Formed 1/8" steel pan houses a ductile iron ring. Zinc plated to resist corrosion. Rated 2,000 pounds working load limit.

This backing plate must be used with B-801 Tie-Down Ring to provide additional support when mounting to wood surfaces. Galvanized steel. Mounting hardware is not included.

  • Per federal D.O.T. requirements, working load limit is 1/3 of the rated capacity
  • Formed 1/8" steel pan houses a ductile iron ring
  • 3-5/8" diameter hole with 7/8" clearance below surface is required
  • Square mounting holes for use with 3/8-16 x 2-1/4" carriage bolts (not included)
  • Ultimate breaking strength: 6,000 lbs.
  • Do not use for lifting
  • Mounting hardware sold separately

Specifications

Specifications
Brand Buyers
Finish Zinc Plated
Width 4-1/2 inch
Height 4-7/8 inch
Breaking Strength 6,000 lbs.
Working Load Limit 2,000 lbs.
Mounting Style Bolt-On
