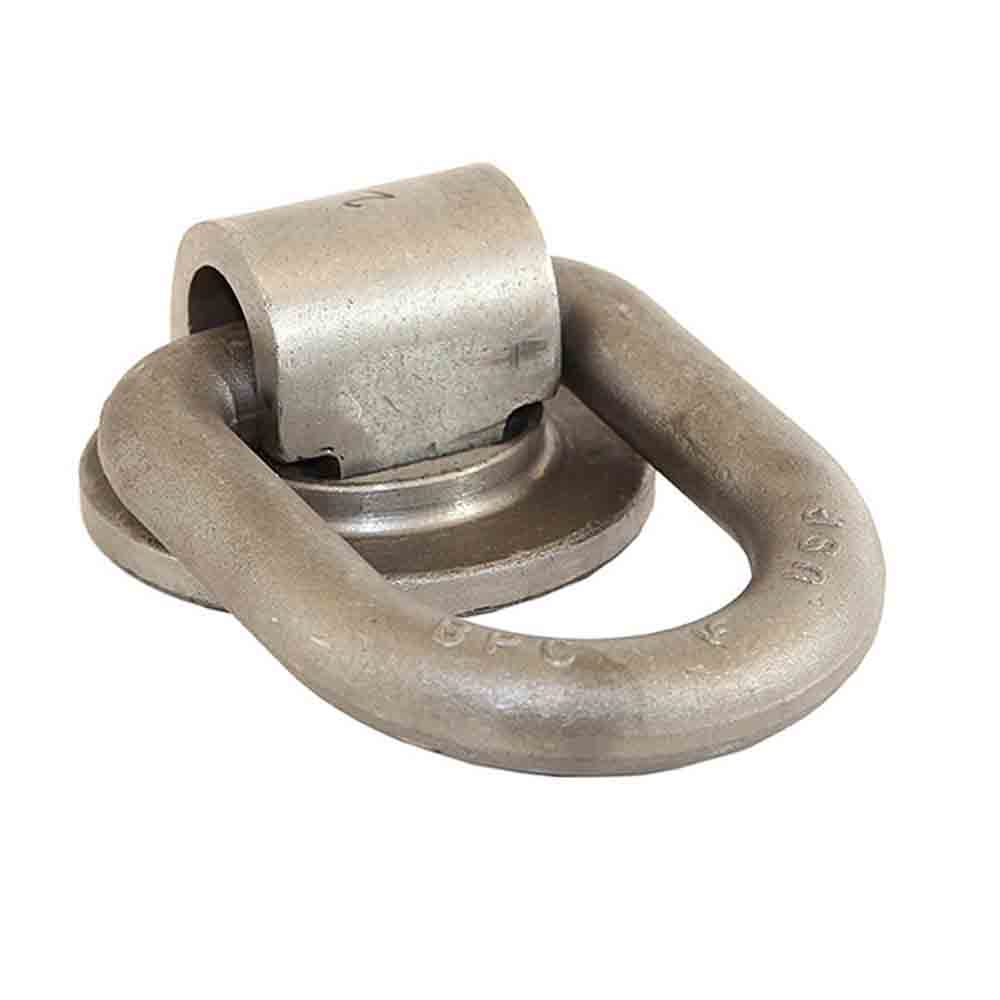

Heavy Duty Weld-On Rotating Tie-Down Ring

Buyers

SKU
B-51
List Price: $75.27
$50.18
In-Stock
- +

Product ships FREE on orders over $99

Have a Question ? Talk to a specialist- Live chat or call 877-507-0944

Heavy Duty Weld-On Rotating Tie-Down Ring

Product Details

Surface mounted Heavy Duty Weld-On Tie-Down Ring for trucks and trailers. Ring rotates for optimal strapping angle. Forged, unfinished, 1 inch diameter steel D-Ring measures 4 inches x 3 inches I.D. Rated 15,586 pounds working load limit (D-ring only).

  • Per federal D.O.T. requirements, working load limit is 1/3 of the rated capacity
  • Forged 1" diameter ring w/ mounting bracket
  • D-ring is made of C-1045 steel
  • Mounting bracket - AI SI-1025 Steel
  • Application load limits may vary per installation
  • Commonly used on side rails and decks of heavy equipment trailers
  • Ring rotates for optimal strapping angle
  • Not approved for overhead use
  • Dimensions: Ring - 1" Diameter, 3" x 4" I.D.
  • Capacity: Working Load Limit- 15,586 lbs. (D-ring only)
  • Mounting Style: Weld-On
  • Finish: Unplated Natural Finish

Specifications

Specifications
Brand Buyers
Finish Raw Steel
Made In USA
Width 5 inch
Breaking Strength 46,748 lbs.
Working Load Limit 15,586 lbs.
Mounting Style Weld-On
Inside Diameter 3 inch
