Dexter DX6.6 Drum Brake Actuator - 6,600 lbs. Capacity

Dexter

SKU
70520
List Price: $292.95
$212.78
In-Stock
- +

Product ships FREE on orders over $99

Have a Question ? Talk to a specialist- Live chat or call 877-507-0944

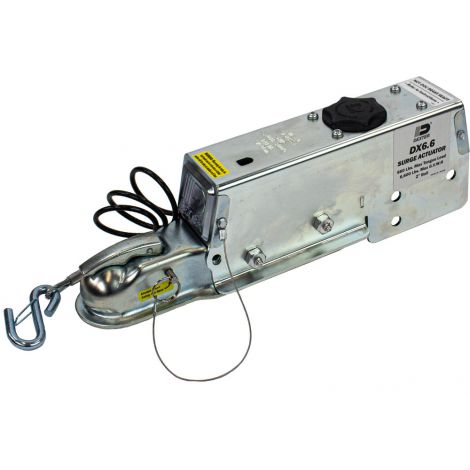

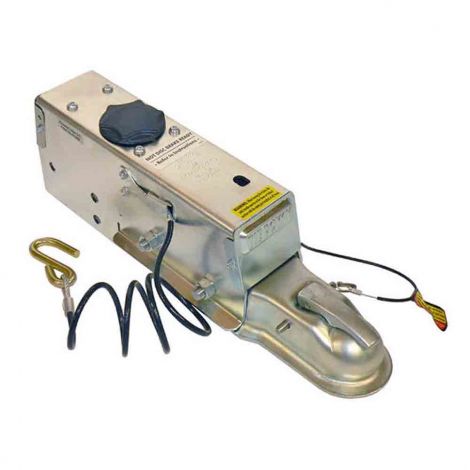

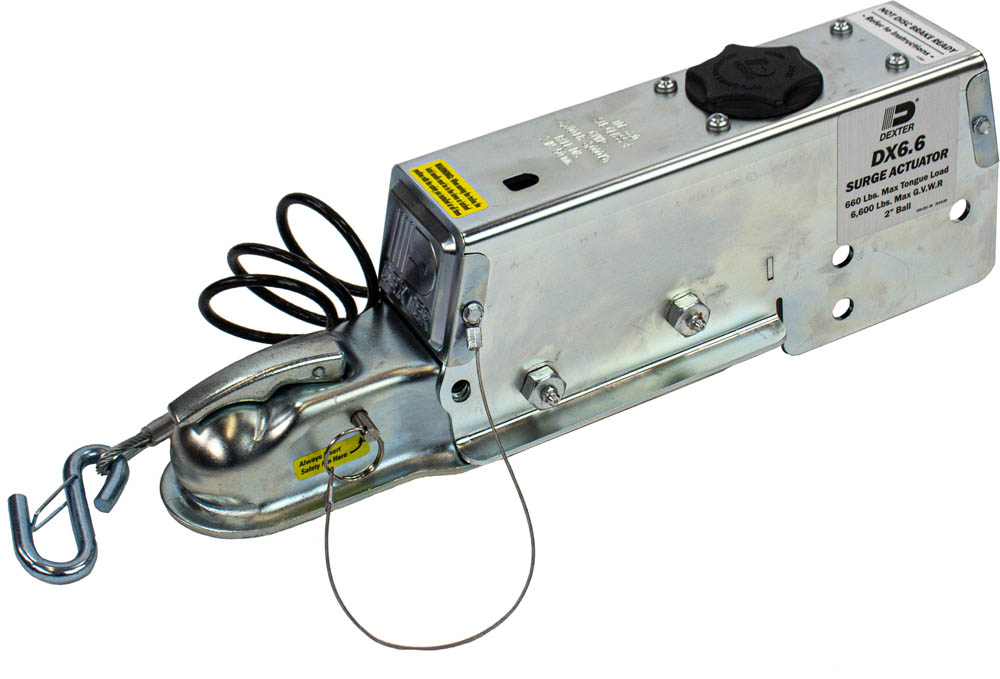

Dexter DX6.6 Drum Brake Actuator. (Formerly Tie Down Engineering 660E) Equipped with the new "Drop N Go" latch mechanism. The quick lock mechanism will automatically lock when lowered onto the hitch ball. Fits 2" balls and mounts onto a 3" wide trailer frame. Bolt on design. Rated up to 6,600 lbs GTW with a maximum tongue weight at 660 lbs.

Product Details

  • Cast steel ball clamp is stronger than stamped steel
  • Equipped with a cast steel latch - lays flatter for improved looks
  • Large capacity aluminum master cylinder requires less refilling
  • Large fill cap for easier adding
  • Grease fittings on roller pin for longer life & smoother operation
  • Works with Drum brakes only
  • Coiled E-Stop cable - PVC coated

Specifications

Specifications
Brand Dexter
Brake Lockout Optional
Brake Style Drum
Capacity 6,600 lbs.
Channel Width 3 inch
Finish Zinc
Mounting Style Bolt-On
Tongue Weight 660 lbs.

Instructions

CLICK HERE
