Heavy Duty Spare Tire Carrier

Smith

SKU
27310-G
List Price: $57.95
$52.21
In-Stock
- +

Product ships FREE on orders over $99

Have a Question ? Talk to a specialist- Live chat or call 877-507-0944

SPARE TIRE CARRIER - HD

Product Details

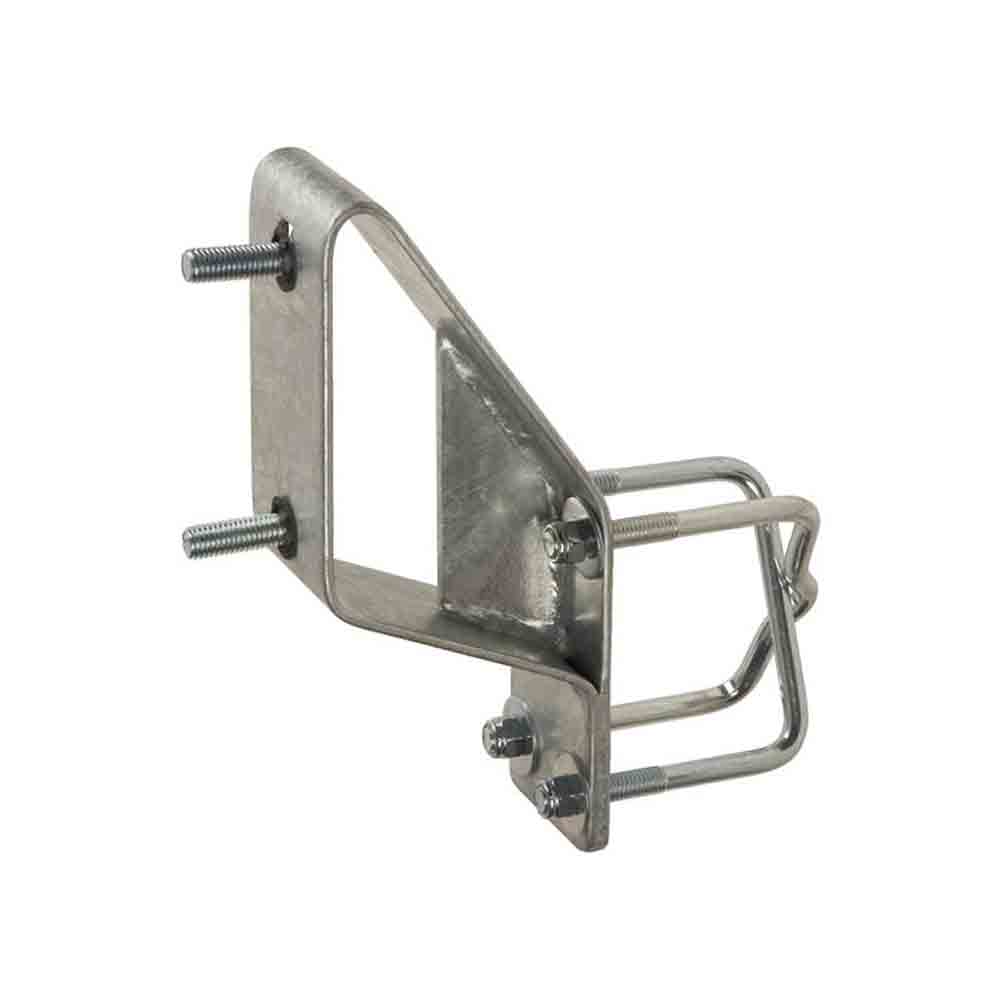

Perfect for mounting your spare tire vertically to the side of trailer tongue or frame rails. This sturdy spare tire carrier mounts to the trailer tongue in the front of the trailer. The offset design moves the tire and wheel up and away from the trailer frame to improve ground clearance. No drilling is required to install the carrier because the included U-bolts clamp the carrier to the trailer frame. The crisscross design increases the holding power of the U-bolts. Mounting u-bolts may be crossed to fit shorter frames or may be installed parallel for more reach.

  • 3/16 inch thick galvanized steel
  • Fits frames up to 4 inches tall by 1 inch to 3-1/2 inches wide
  • Holds either 4 or 5 lug wheels that are up to 15 inches
  • Not compatible with 5-on-5 or 5-on-5-1/2 inch bolt pattern
  • Extra heavy duty welded steel construction
  • Offset height raises tire and provides additional ground clearance
  • Vertical offset - 5 inch, Side offset - 4-1/2 inch
  • Comes complete with all zinc plated hardware

Specifications

Specifications
Brand Smith
Finish Galvanized

Instructions

CLICK HERE
