Dexter Model 10 Drum Brake Actuator with Drop 2-5/16 Inch Ball - 12,000 lbs
SKU
2478100
List Price:
$837.90
Dexter Model 10 Drum Brake Actuator with Drop 2-5/16 Inch Ball - 12,000 lbs
693.43
In-Stock
Have a Question ? Talk to a specialist- Live chat or call 877-507-0944
BRAKE ACTUATOR - MODEL 10
Product Details

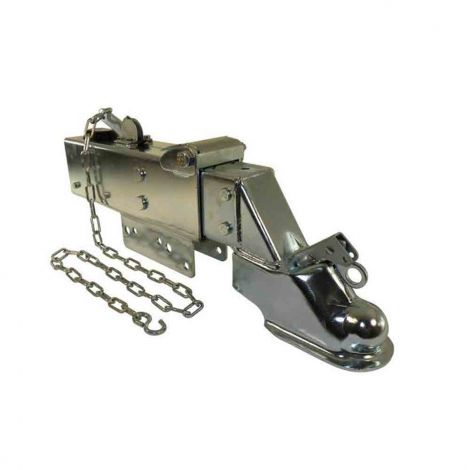

This Dexter Model 10 (formerly Dico / Titan) surge drum brake actuator is equipped with a 2-5/16" coupler with 3" drop. Unit is designed to work with drum brakes and must be bolted to a 3" wide trailer tongue. Rated for up to 12,500 lbs. with a maximum tongue weight of 1,250 lbs. Includes breakaway device.
Specifications
| Brand | Dexter |
|---|---|
| Brake Lockout | Optional |
| Brake Style | Drum |
| Capacity | 12,000 lbs. |
| Channel Width | 3 inch |
| Finish | Zinc |
| Mounting Style | Bolt-On |
| Tongue Weight | 1,250 lbs. |
