Dexter Model 10 Drum Brake Actuator with Adjustable Channel
SKU
24046
List Price:
$757.57
Dexter Model 10 Drum Brake Actuator with Adjustable Channel
611.72
In-Stock
Have a Question ? Talk to a specialist- Live chat or call 877-507-0944
BRAKE ACTUATOR - MODEL 10
Product Details

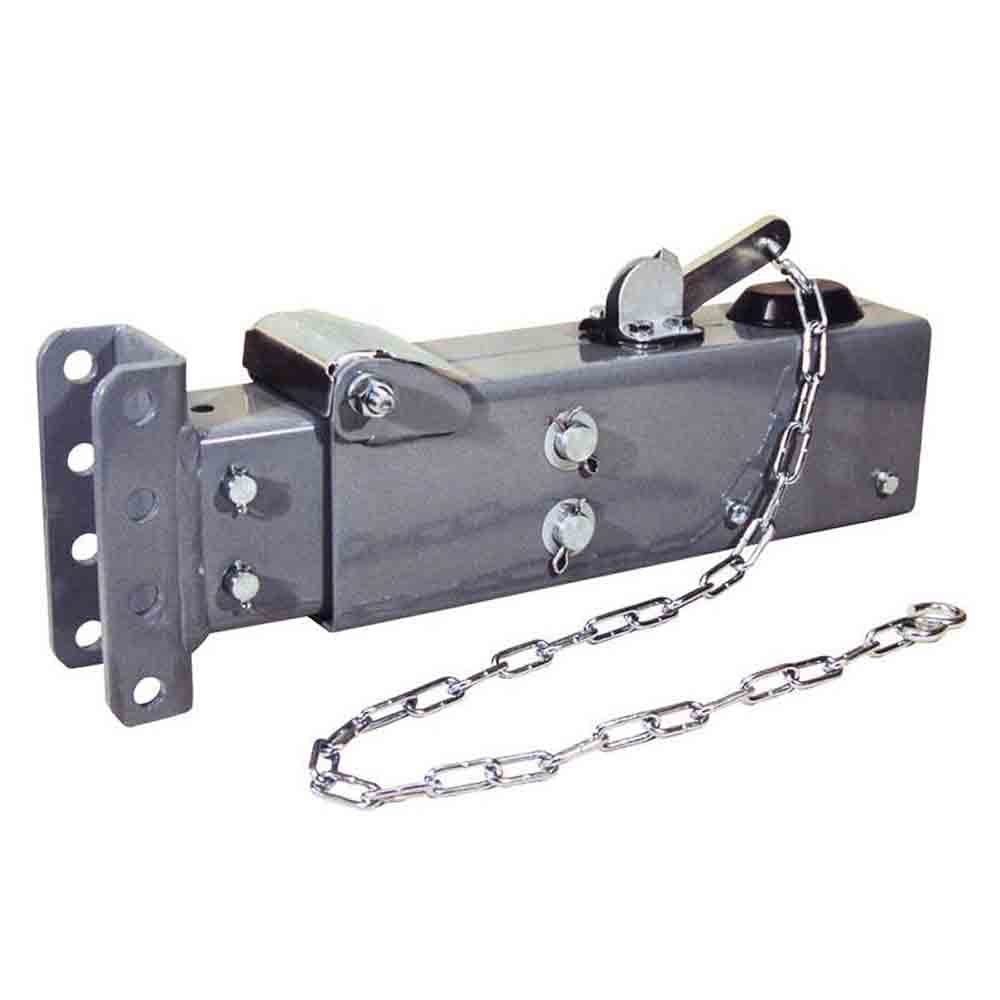

This Dexter Model DX12.5 Surge Brake Actuator (formerly Dico / Titan Model 10) is equipped with a 4-position leveler channel to accept a lunette ring or hitch ball coupler (sold separately) and adjust to varying hitch heights. Unit is designed to work with drum brakes and must be welded to a 3" wide trailer tongue. Rated for up to 12,500 lbs. with a maximum tongue weight of 1,250 lbs. Includes breakaway device. Gray primer finish. Titan part number: 2404600
Specifications
| Brand | Dexter |
|---|---|
| Brake Lockout | Optional |
| Brake Style | Drum |
| Capacity | 12,500 lbs. |
| Finish | Primed |
| Tongue Weight | 1,250 lbs. |
Instructions
Accessories
