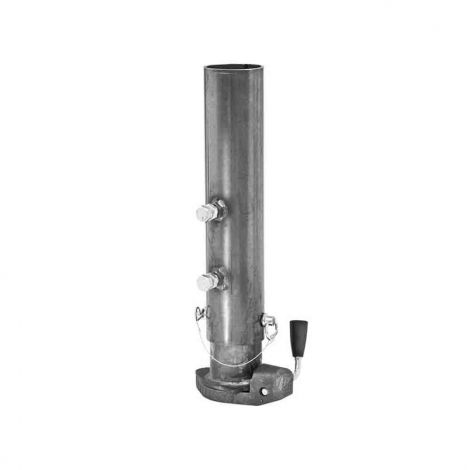

BX1 Gooseneck Coupler, fits 2-5/16 Inch Diameter Ball, 30,000 lbs. Gross Towing Capacity, Round

Bulldog

SKU
128904
List Price: $507.95
$255.62
Out-Of-Stock
- +

Product ships FREE on orders over $99

Have a Question ? Talk to a specialist- Live chat or call 877-507-0944

Bulldog BX1 Gooseneck Coupler, fits 2-5/16 Inch Diameter Ball, 30,000 lbs. Gross Towing Capacity, Round

Product Details

The Bulldog BX1 coupler is the result of generations of design expertise and field experience. If incorporates innovative features that revolutionize the benefits available from a gooseneck coupler and offers flexible mounting options with its Next Generation locking plate coupler mechanism. These features combine to make hooking up, adjusting vertical height and disconnecting quick and easy. The Next Generation coupler design operates easily with one hand thanks to the new locking handle design, and maintains smooth operation over time with grease fittings for every important operating part. Coupler includes 4-1/2 inch diameter outer tube with 2 set screws, 4 inch diameter inner tube with cast locking plates and 3/4 inch load bearing pin.

  • Provides continuous tight ball fit with ever-increasing cam tightening locking mechanism
  • Resists theft with integrated feature to allow pad-locking the coupler to the ball (lock not included)
  • Guides ball into socket more easily - bottom locking plate is 50% larger than competitors
  • 22.6" to 30.6" vertical adjustment - 8" total
  • Lengthens life of locking mechanism with oil-impregnated bushing and grease fittings on critical moving parts
  • Includes 4-1/2" outer, 4" inner tubes - unpainted
  • Note: Requires welding of outer tube to trailer frame

Specifications

Specifications
Brand Bulldog
Capacity 30,000 lbs.
Finish Unpainted
Rating 30,000 lbs.
Warranty Limited 5 Year Warranty

Instructions

CLICK HERE
