Replacement OEM 7-Way RV Blade Style Socket (Plugs into USCAR socket)

SKU
11-893
List Price: $17.95
$14.39
In-Stock
- +

Product ships FREE on orders over $99

Have a Question ? Talk to a specialist- Live chat or call 877-507-0944

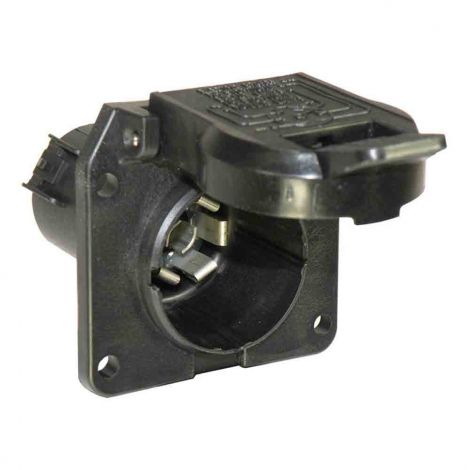

This connector is a 7-way RV blade socket and is designed to mount on the vehicle-side of the connection, to accept a trailer wiring plug. It features a USCAR base to connect to a standard USCAR plug (see application info to verify fitment with your vehicle). Once plugged into the USCAR socket, it provides a connection for the taillights, turn signals, brake lights, backup or reverse lights, electric trailer brakes and a 12-volt battery. It also provides a connection for the ground wire.

Product Details

7-way flat pin socket used as original equipment on many GM, Ford and Nissan vehicles equipped with a factory 7-way connector.

This trailer wiring connector is built to withstand the elements. It is constructed from durable black molded plastic to be impervious to rust, and it features a dust cap with a spring mechanism to keep out rain, salt, grime and dirt when the connector is not in use.

  • Nylon housing
  • Plugs into USCAR socket to provide 7-way RV blade trailer wiring connector
  • Simple plug-and-play design eliminates the need for cutting or splicing
  • 7-way connects tail, brake, reverse, turn signals, brakes and auxiliary power
  • Spring-loaded dust cover keeps connector clean when not in use

Specifications

Specifications
Polarity Sensitive Yes
Material Nylon
Warranty Limited 1 Year Warranty
Style Of Connection 7-Way OEM
Voltage 12V DC
